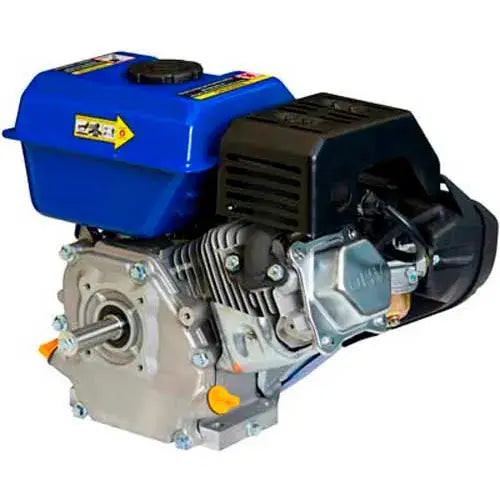

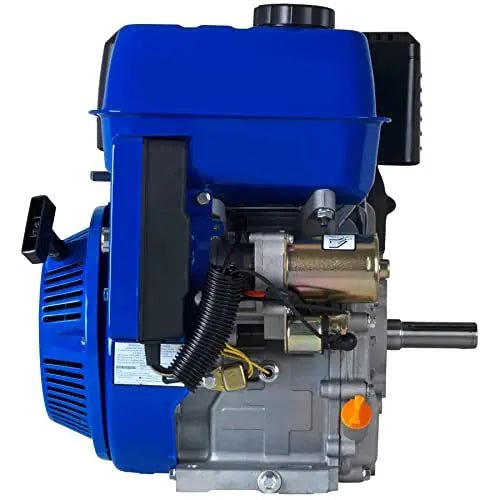

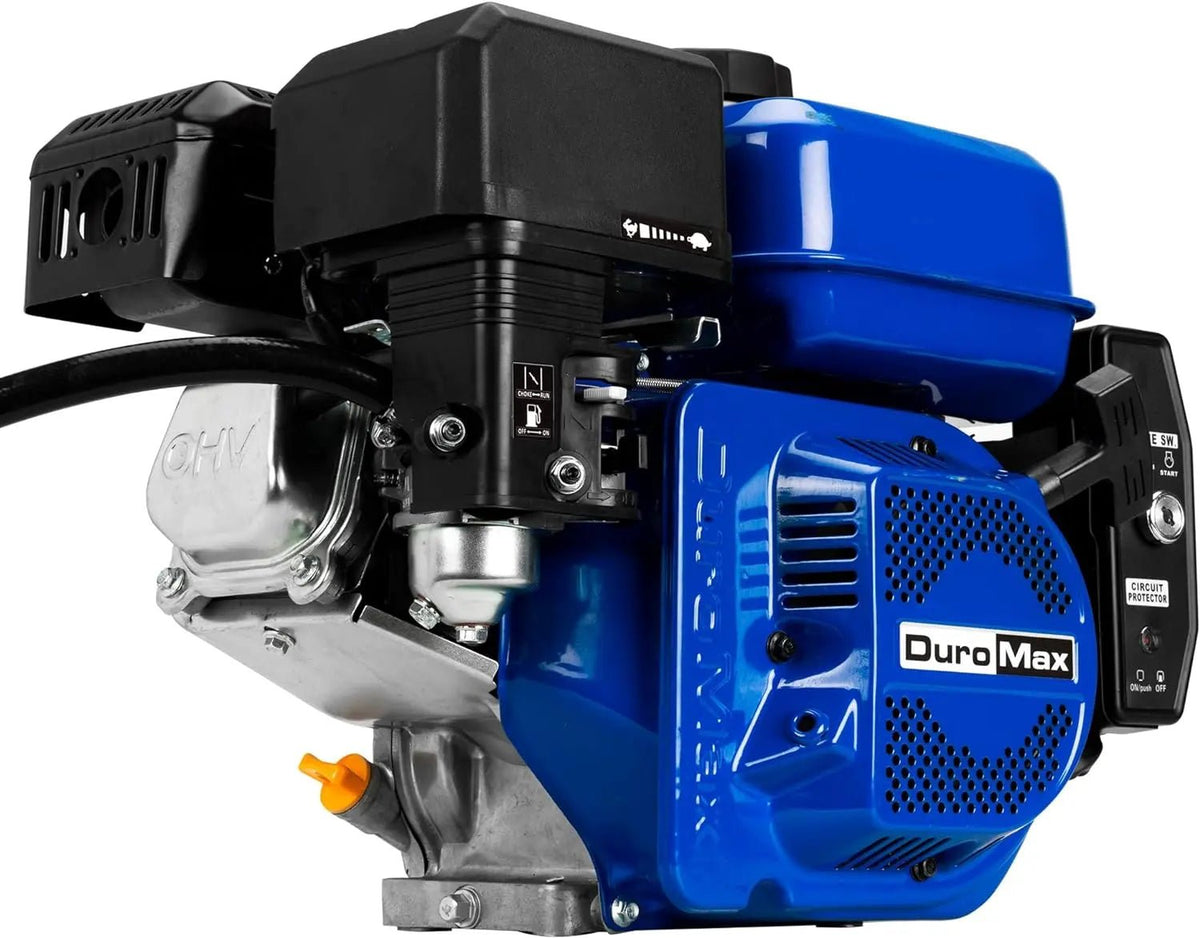

208cc 3/4-Inch Shaft Recoil/Electric Start Gasoline Engine
208cc 3/4-Inch Shaft Recoil/Electric Start Gasoline Engine
Couldn't load pickup availability
The DuroMax XP7HPE is one of our most compact and lightweight engines available, but don’t let the size fool you; this powerful 208cc 4-stroke OHV engine has plenty of power for multiple light duty applications including go karts, pressure washers, trailer mounted-mobile carwashes, log splitters, roto tillers- cultivators, and water/trash transfer pumps.
Description
Description
This engine is equipped with convenient features like a large 1-gallon fuel tank for longer runtimes, an electric start option for easier startups, an E-Z Pull Recoil Starter for startup flexibility, and EPA and CARB approved for safe mandated use.
Specifications
Specifications
Manufacturer DuroMax Power Equipment
Part # XP7HPE
Engine Type 4-Stroke
Valve Type OHV
Engine Cooling Type Forced Air
Displacement 208cc
Bore 70mm
Stroke 55mm
Max Output 3600 RPM
Max Torque 13.2 Nm / 9.7 ft/lb.
Compression Ratio 8.5:1
Shaft Orientation Horizontal
Shaft Size 3/4" Diameter, 2-3/8" Long, 3/16" x 1.79" Keyway
Shaft End 5/16" Size 24 UNF - Drilled and Tapped
Shaft Rotation Counter Clockwise
Measurement from Center of Shaft to Base 4.175"
Fuel Tank Capacity 1 Gallons
Fuel Types 87+ Octane Gasoline
Fuel Delivery System Carburetor
Average Run Time 1/4 Gallon Per Hour (at 1/2 load)
Starting Type Key Switch
Electric Start Yes
Recoil Start Yes
Cast Iron Sleeve Yes
Bearing Type Stainless Steel Ball Bearing
Oil Cooling Type Splash
Oil Capacity 20.3 fluid oz.
Recommended Oil 10W-30
Recommended Oil Types Blended, Conventional, or Synthetic
Product Dimensions 16.3"-Long x 13"-Wide x 13.4"-High
Product Weight 38-lbs
UPC 811640011208
Warranty 3 Year
EPA Certified Yes
CARB Certified Yes
50 State Emissions Yes
What's in the Box? DuroMax XP7HPE Engine, 12V Battery Leads, and Owner's Manual
