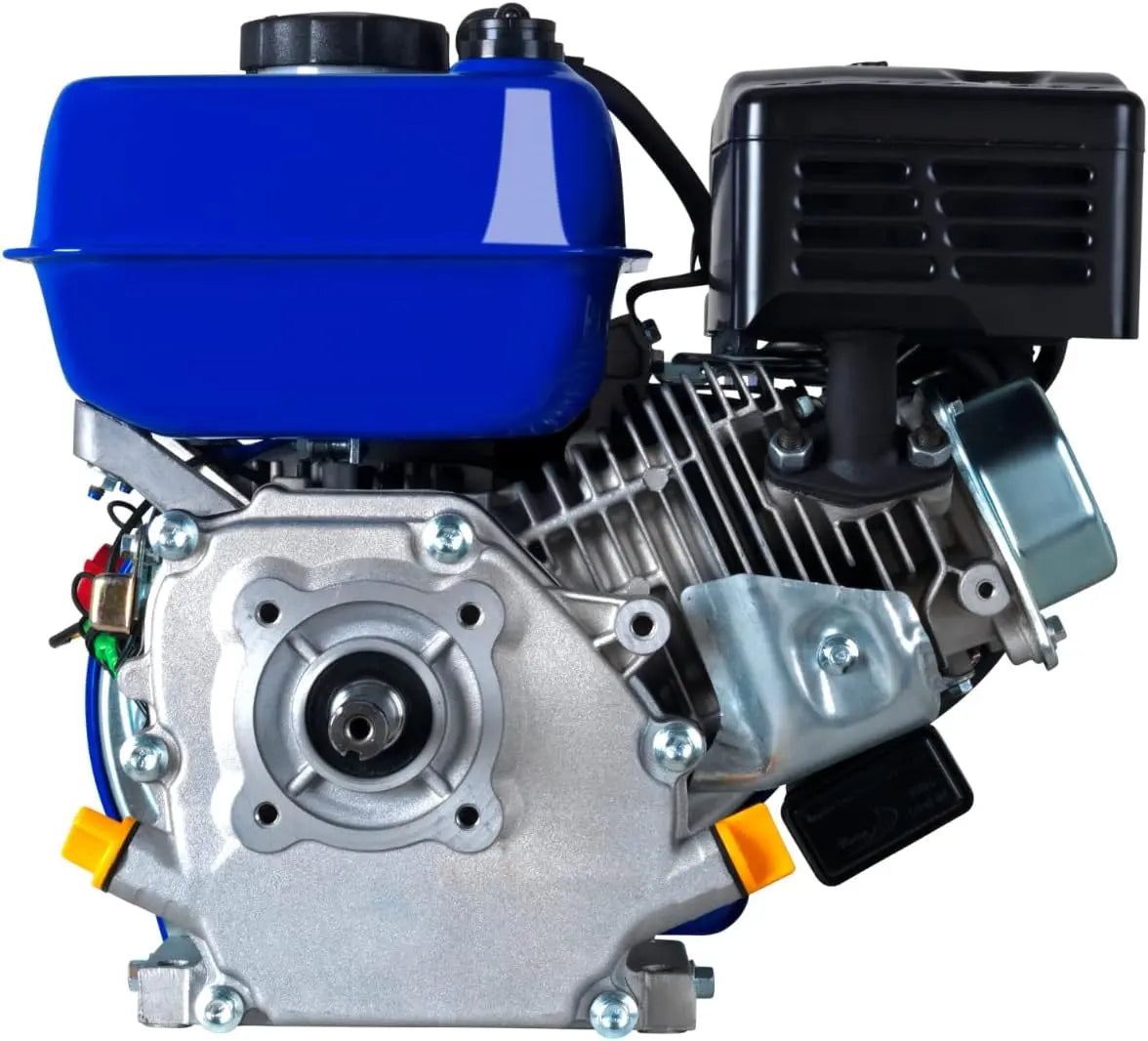

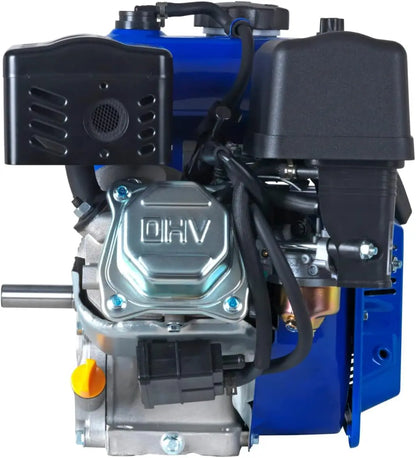

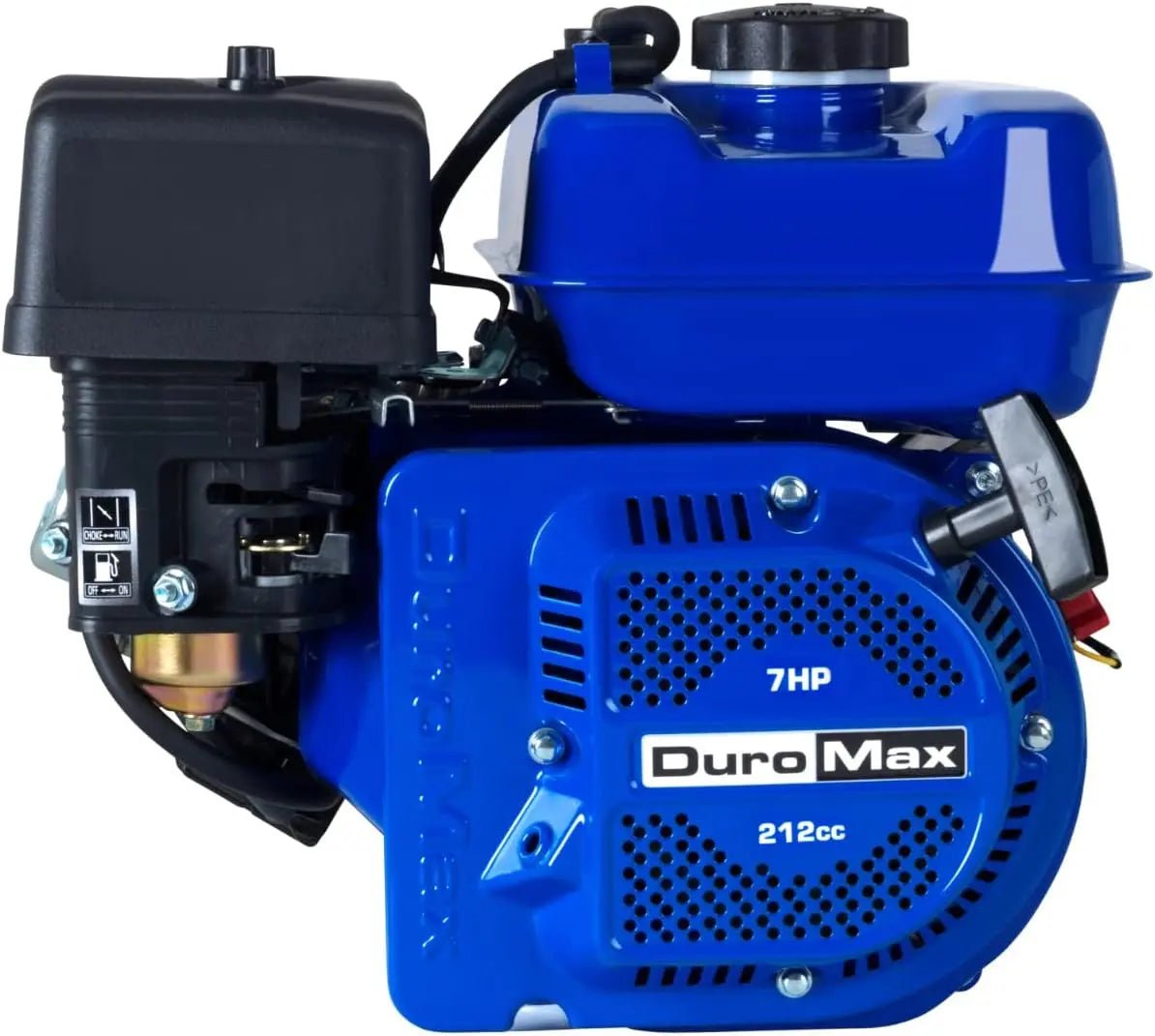

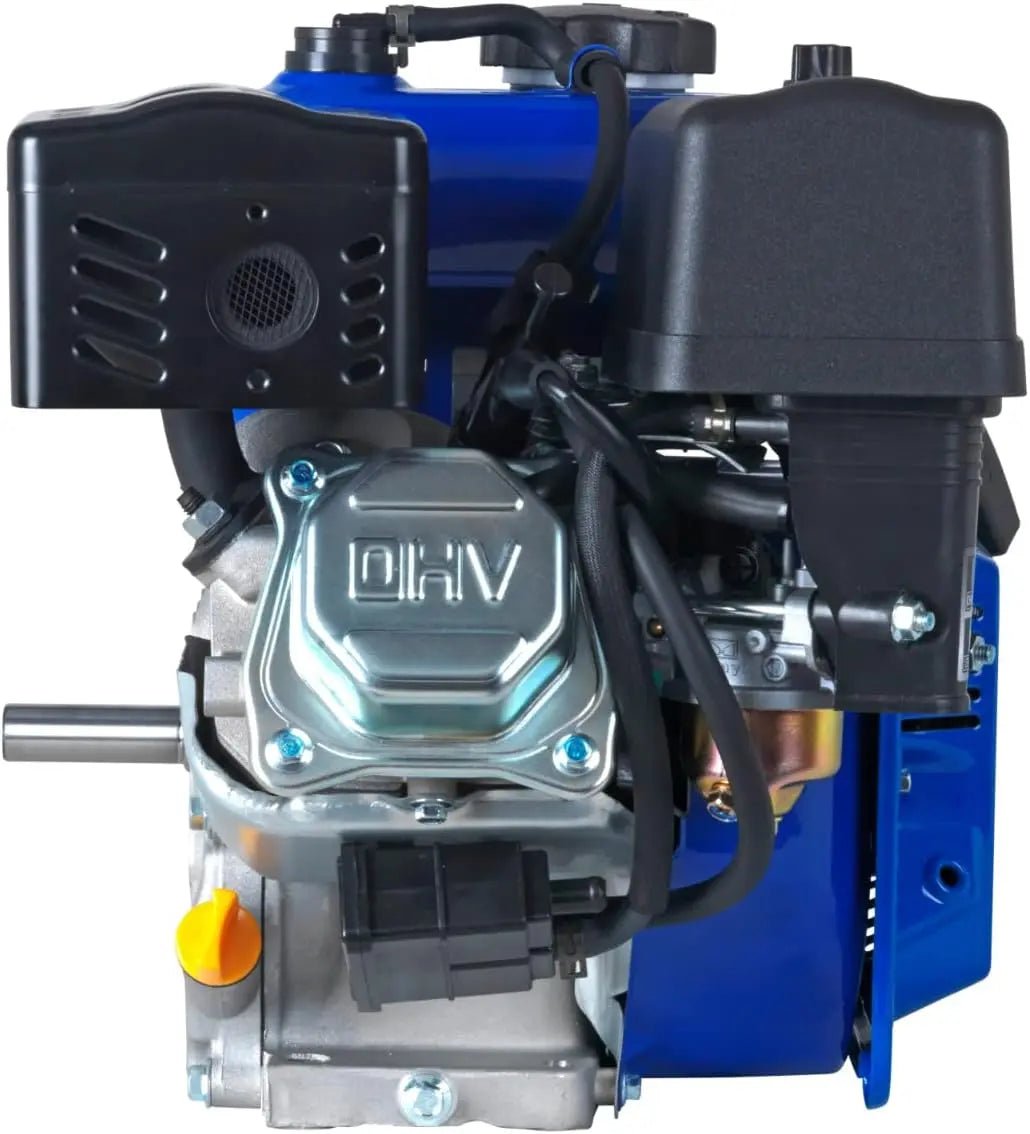

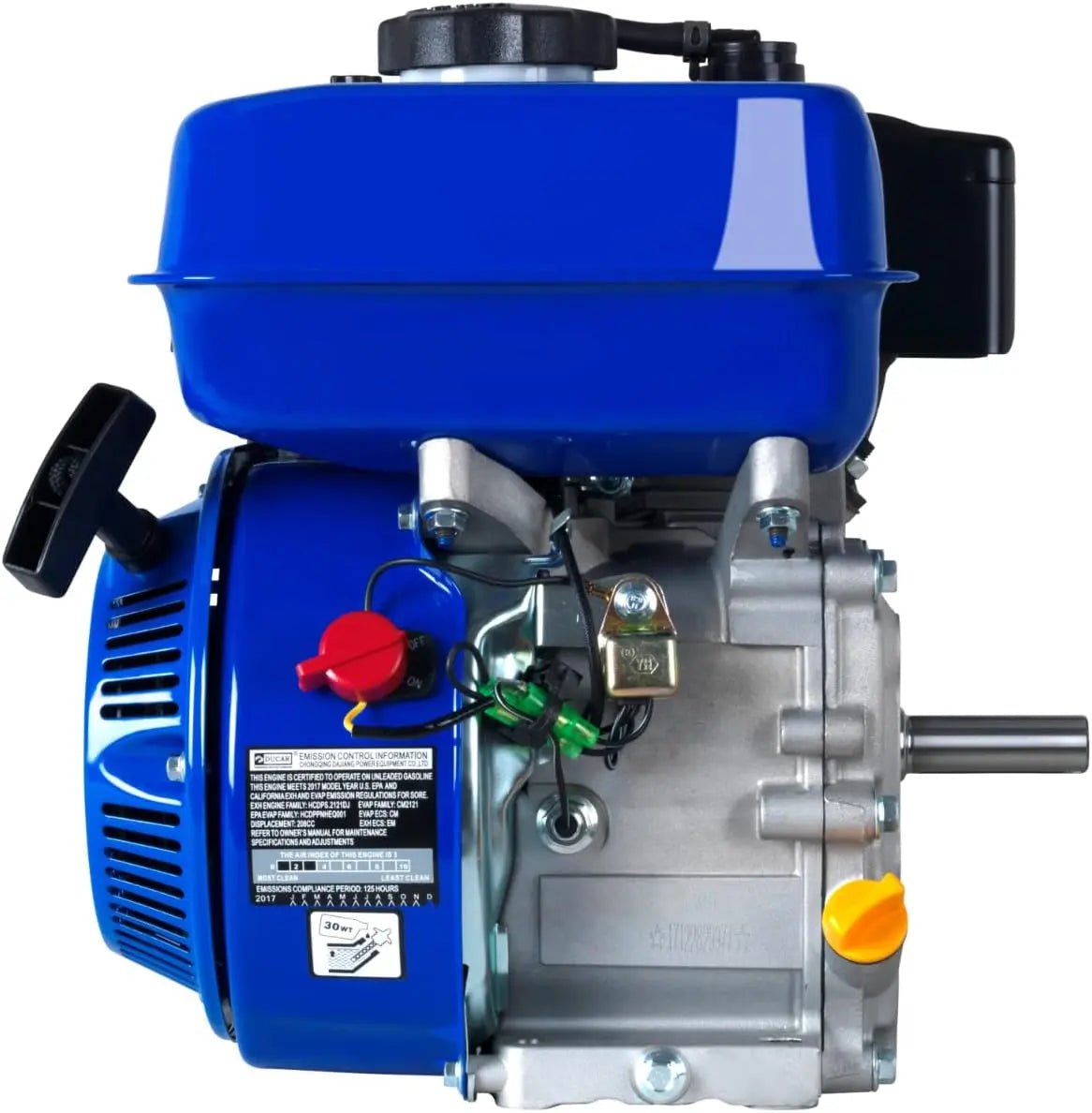

208cc 3/4-Inch Shaft Recoil Start Gasoline Engine

This engine is equipped with convenient features like a large 1-gallon fuel tank for longer runtimes, an E-Z Pull Recoil Starter for starting the engine with ease, and EPA and CARB approved for safe mandated use.

Manufacturer DuroMax Power Equipment
Part # XP7HP
Engine Type 4-Stroke
Valve Type OHV
Engine Cooling Type Forced Air
Displacement 208cc
Bore 70mm
Stroke 55mm
Max Output 3600 RPM
Max Torque 13.2 Nm / 9.7 ft/lb
Compression Ratio 8.5:1
Shaft Orientation Horizontal
Shaft Size 3/4" Diameter, 2-3/8" Long, 3/16" x 1.79" Keyway
Shaft End 5/16" Size 24 UNF - Drilled and Tapped
Shaft Rotation Counter Clockwise
Measurement from Center of Shaft to Base 4.175"
Fuel Tank Capacity 1 Gallons
Fuel Types 87+ Octane Gasoline
Fuel Delivery System Carburetor
Average Run Time 1/4 Gallon Per Hour (at 1/2 load)
Starting Type Recoil
Recoil Start Yes
Cast Iron Sleeve Yes
Bearing Type Stainless Steel Ball Bearing
Oil Cooling Type Splash
Oil Capacity 20.3 fluid oz.
Recommended Oil 10W-30
Recommended Oil Types Blended, Conventional, or Synthetic
Product Dimensions 14.6"-Long x 13"-Wide x 13.4"-High
Product Weight 32.6-lbs
UPC 811640011192
Warranty Year
EPA Certified Yes
CARB Certified Yes
50 State Emissions Yes
What's in the Box? DuroMax XP7HP Engine and Owner's Manual
